Rohde & Schwarz CMU 200 Universal Radio Communication Tester 1100.0008.02 AS IS
Rohde & Schwarz CMU 200 Universal Radio Communication Tester 1100.0008.02 AS IS
1 in stock
Couldn't load pickup availability
- This item is sold AS-IS. No returns or exchanges are accepted.
Tested, partially working, some issues. Passes self-tests. Fresh CMOS battery. Overall physical condition is good, minor scuffs and scratches. RF3 output is much lower than it should be, when set to -10dBm, analyzer reads -45dBm. RF1 and RF2 output power and frequency as intended. All three RF inputs read about 11dBm lower than the input signal (checked using two signal sources and two analyzers). For this reason, we are selling the unit AS-IS for parts/repair as a non-working or incomplete unit.
We have not tested / inspected any further, item may have unknown issues we are not aware of.

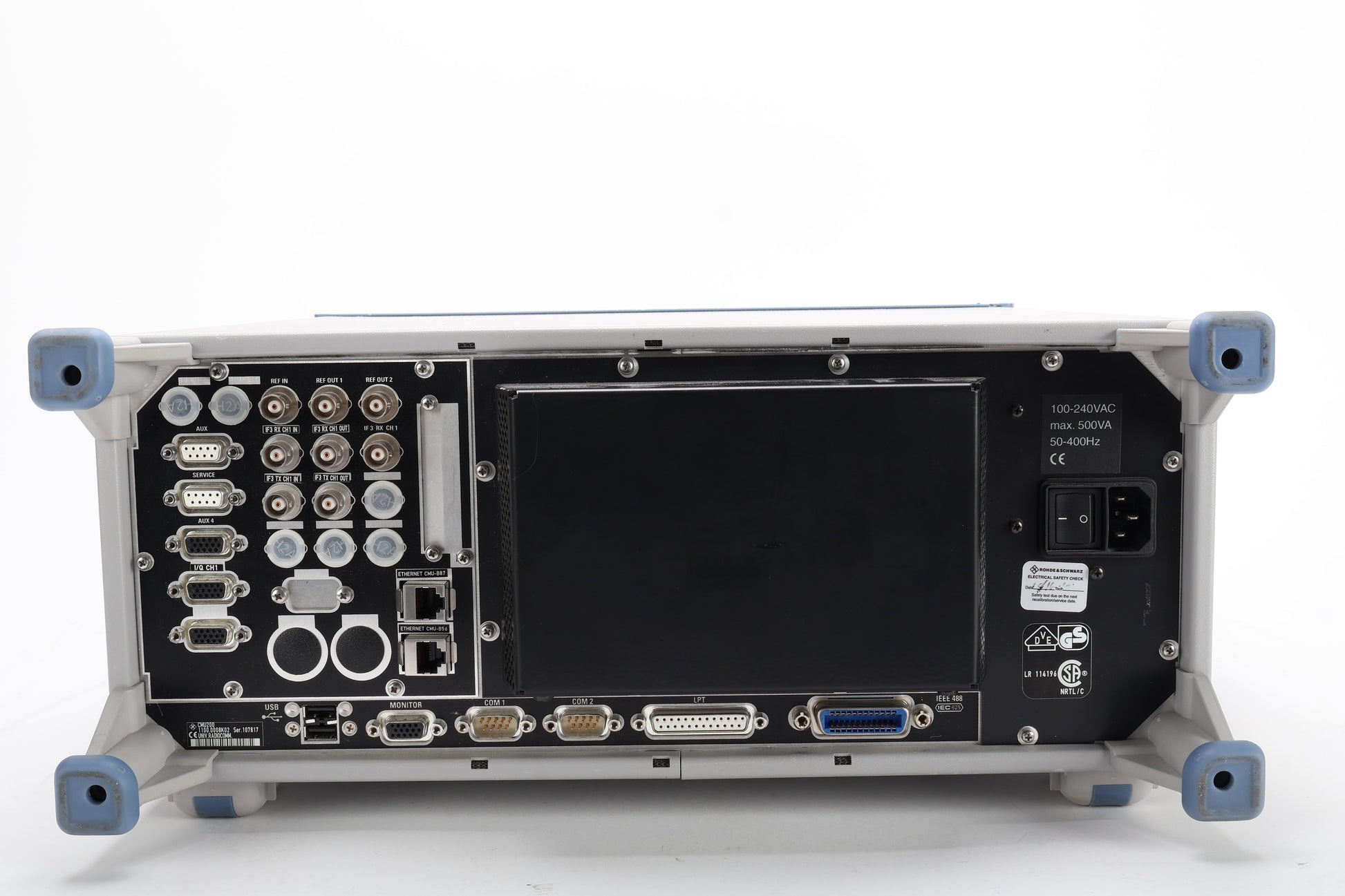

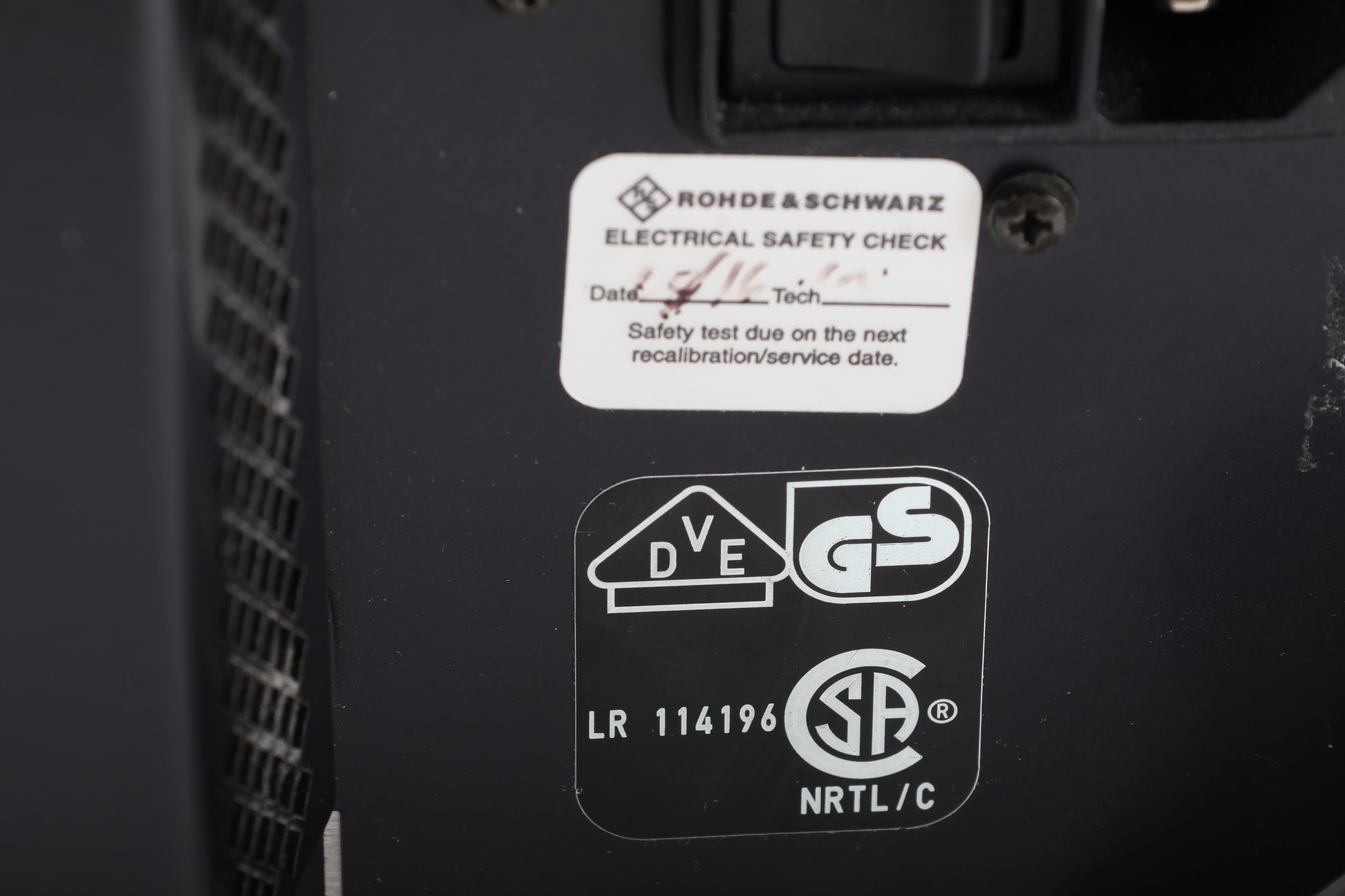

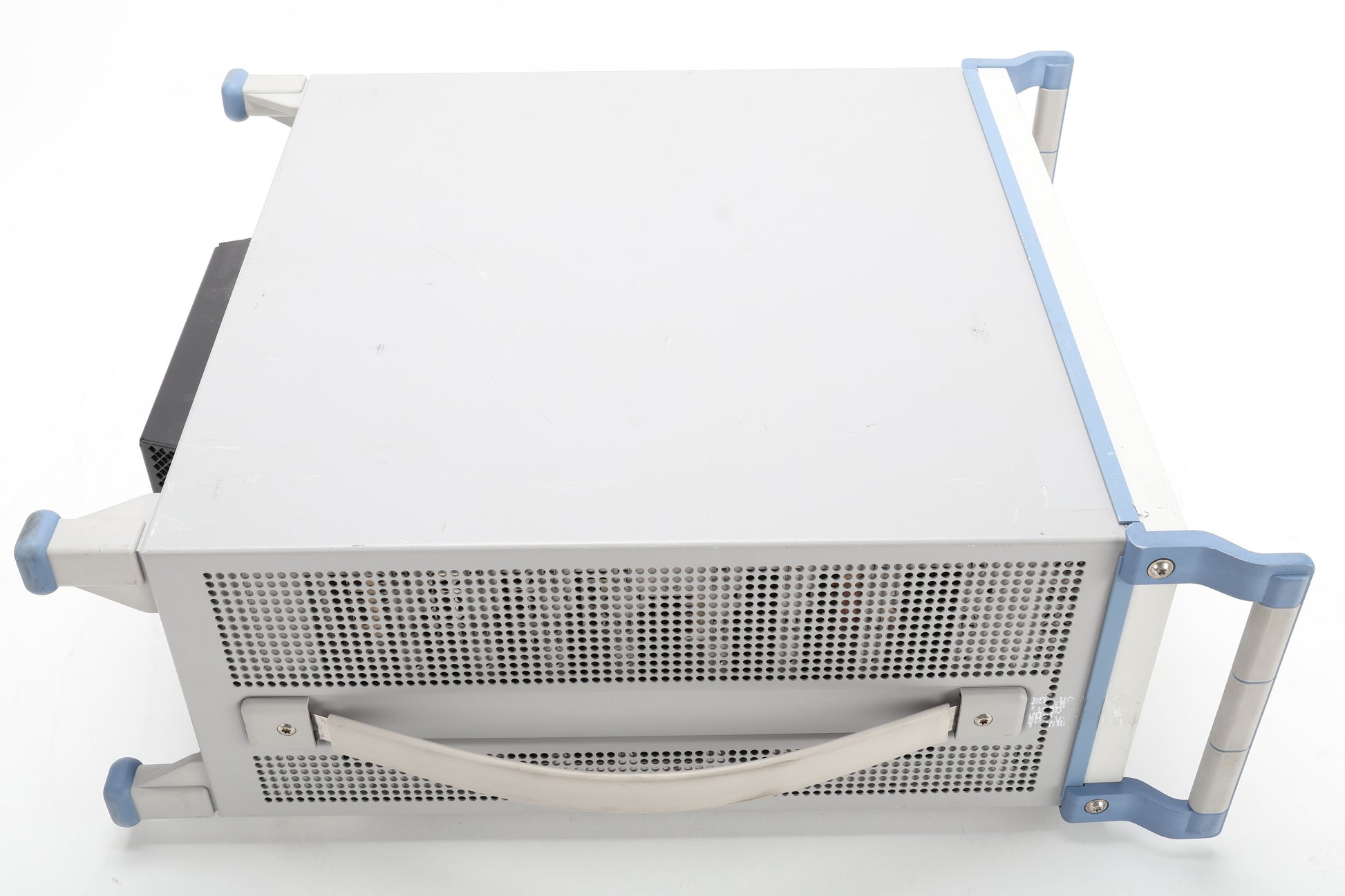

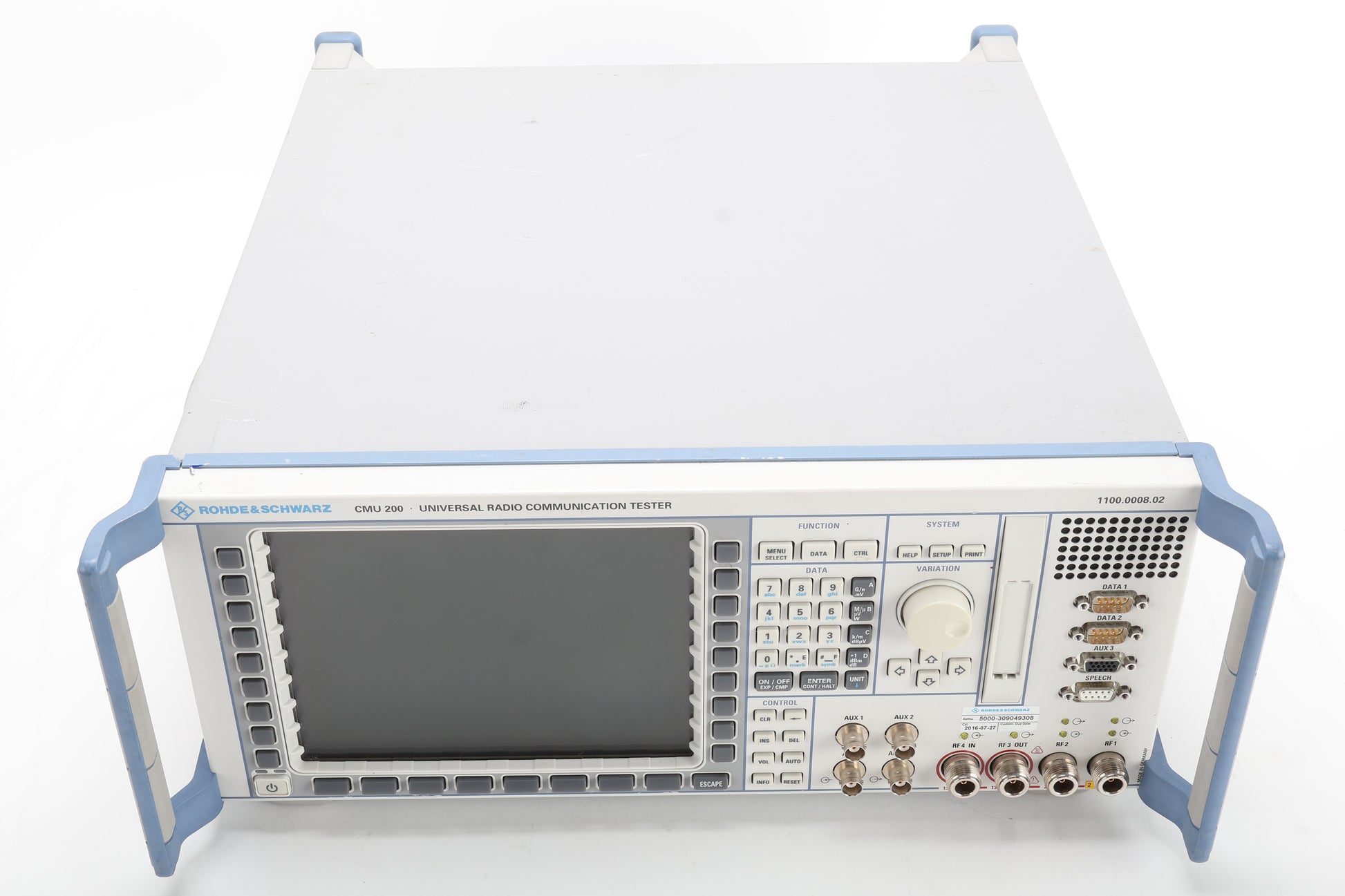

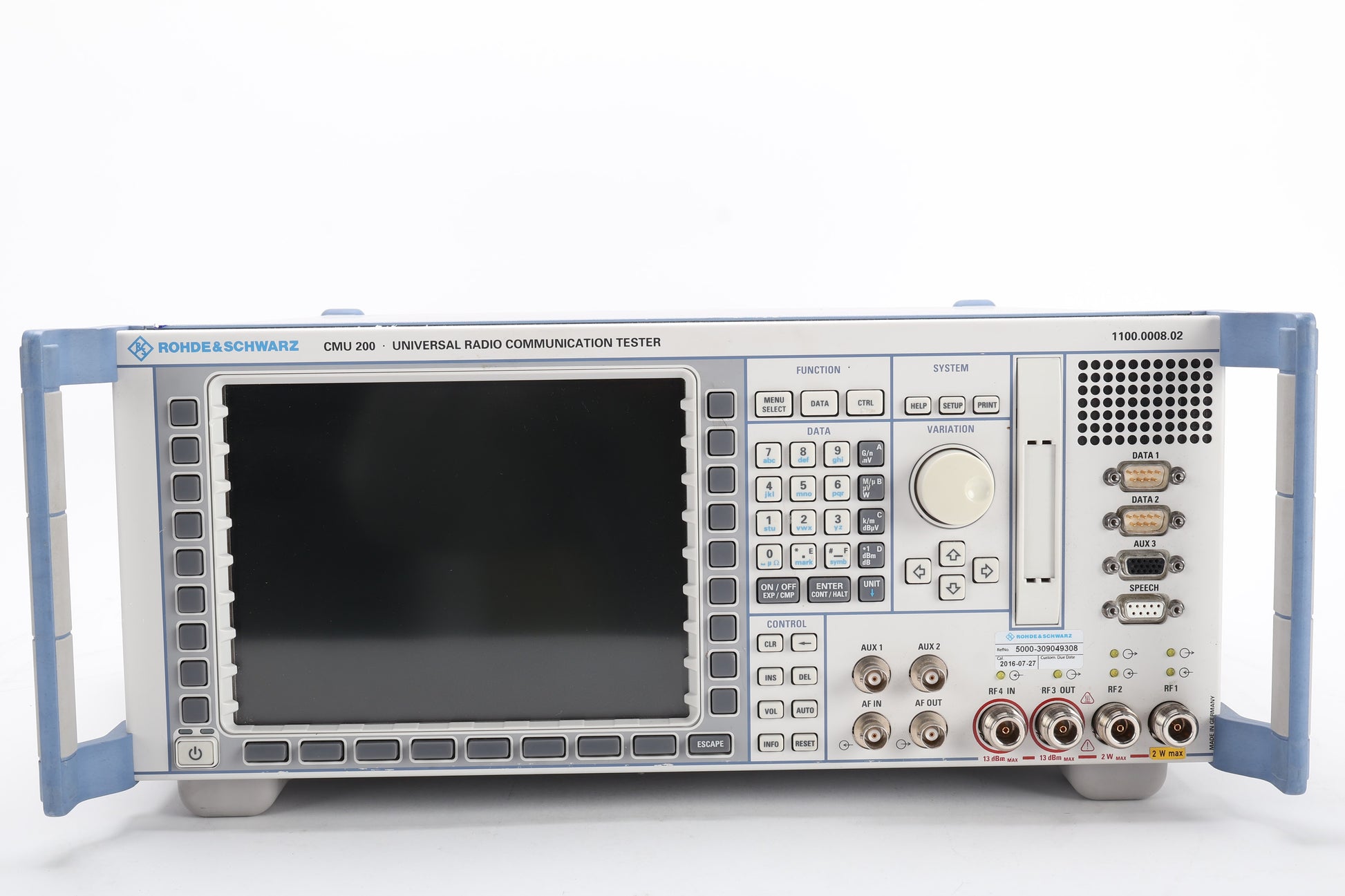

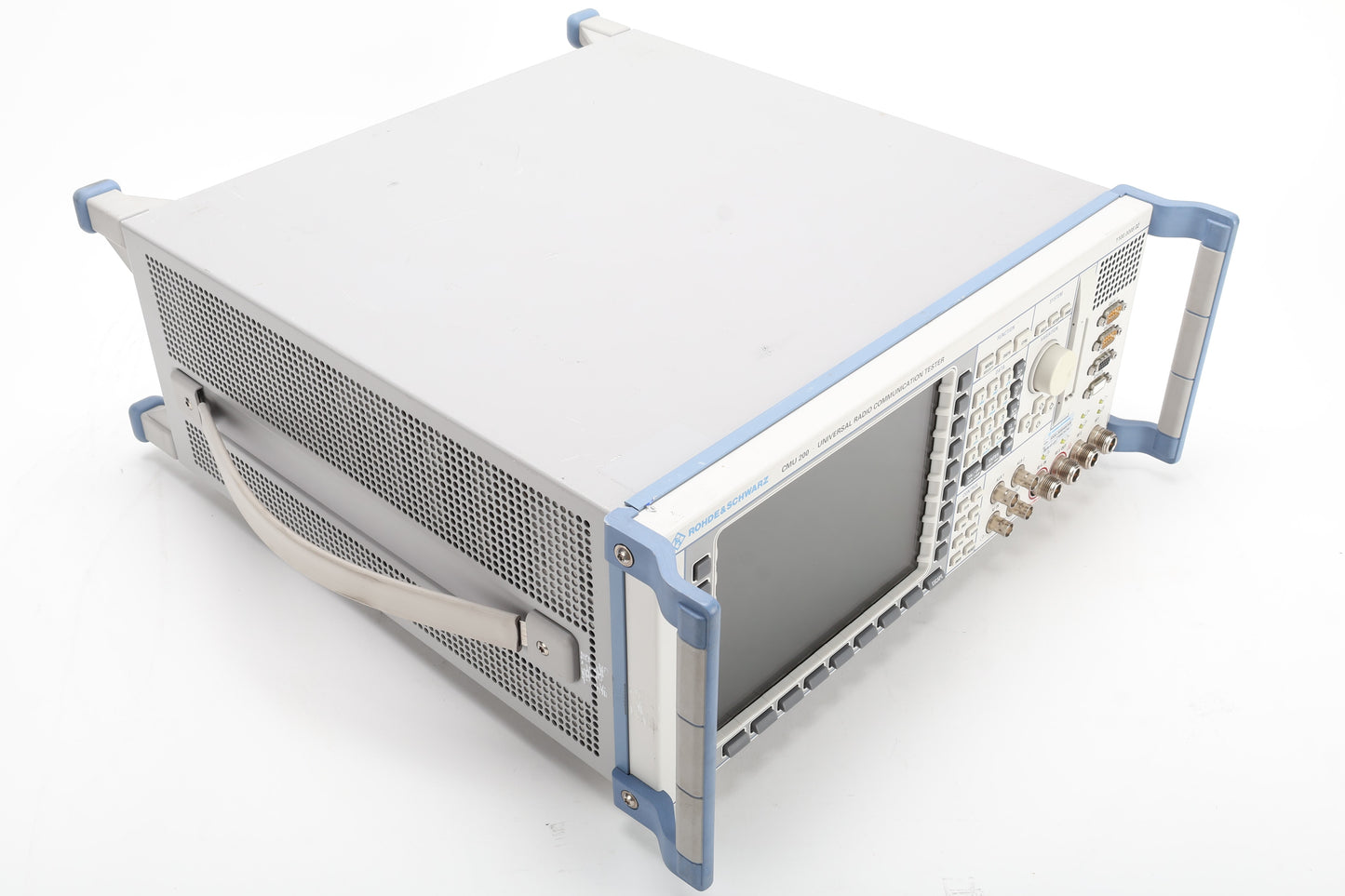

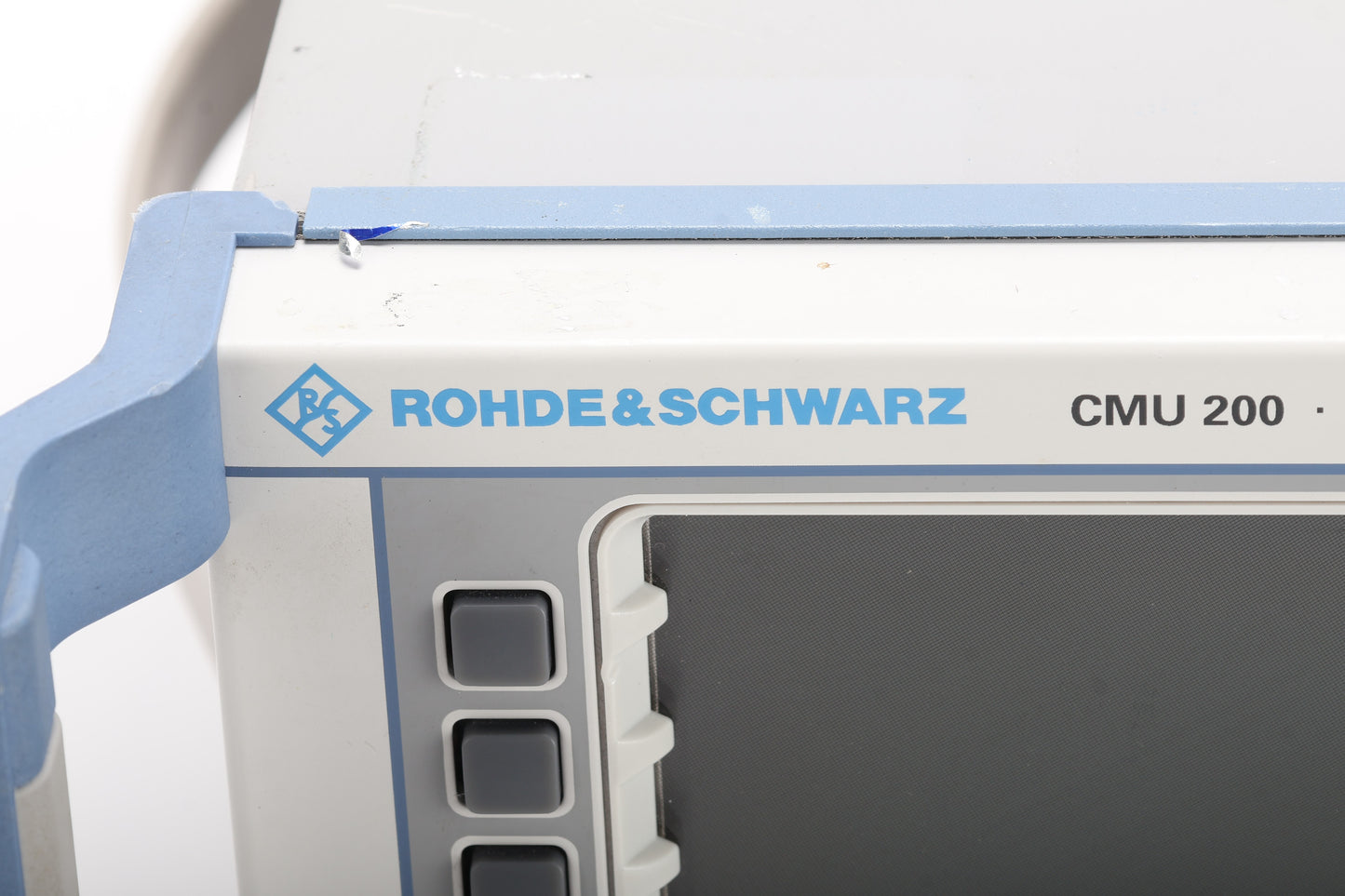

See all item photos for the condition of the unit.
Unless pictured, no power adapter / power cable included.
The unit is on hand and ready to ship. Please feel free to message us with any questions you may have.
| Manufacturer | Rohde & Schwarz |
|---|---|
| Part Number | 1100.0008.02 |
| Model Number | CMU 200 |
| SKU | 19-18357 |
| Ref | 23-122535 |
Software Options:
- CMU-K20 GSM400-MS
- CMU-K21 GSM900-MS
- CMU-K22 GSM1800-MS
- CMU-K23 GSM1900-MS
- CMU-K24 GSM850-MS
- CMU-K42 GPRS @ GSM-MS
- CMU-K43 EGPRS @ GSM-MS
- CMU-K56 HSUPA @ WCDMA-UE
- CMU-K57 WCDMA-UE Band 7 Signalling
- CMU-K58 WCDMA-UE Band 8 Signalling
- CMU-K59 WCDMA-UE Band 9 Signalling
- CMU-K60 HSDPA 14 Mbps @ WCDMA-UE
- CMU-K61 WCDMA-UE Band 4 Signalling
- CMU-K62 WCDMA-UE Band 5 Signalling
- CMU-K63 WCDMA-UE Band 6 Signalling
- CMU-K64 HSDPA 3.6 Mbps @ WCDMA-UE
- CMU-K65 WCDMA-UE TX Tests (3GPP/FDD)
- CMU-K66 WCDMA-UE DL Generator (3GPP/FDD)
- CMU-K67 WCDMA-UE Band 3 Signalling
- CMU-K68 WCDMA-UE Band 1 Signalling
- CMU-K69 WCDMA-UE Band 2 Signalling
Hardware Options:
- CMU-B11 OCXO
- CMU-B17 I/Q-IF Interface
- CMU-B21 v14 Universal Signalling Unit
- CMU-B41 Audio Measurement Unit
- CMU-B54 v14 Signalling Module for GSM, TDMA, AMPS
- CMU-B56 v14 Signalling Module for WCDMA
- CMU-B66 Versatile Baseband Unit TX
- CMU-B68 Versatile Baseband Unit TX + RX v3.04
- CMU-B83 CDMA2000 Signalling Unit v2.88I (Var. 12)
- CMU-B85 Speech Coder for CMU-B83 (12/14) Rev. 0
- CMU-B88 1xEV-DO for CMU-B83 Rev. 0
- CMU-B96 Additional RF Generator
- CMU-U65 v04 DSP for Wideband Measurement
- CMU-U99 RF1 with RF2 Level Range
