The Imaging Source

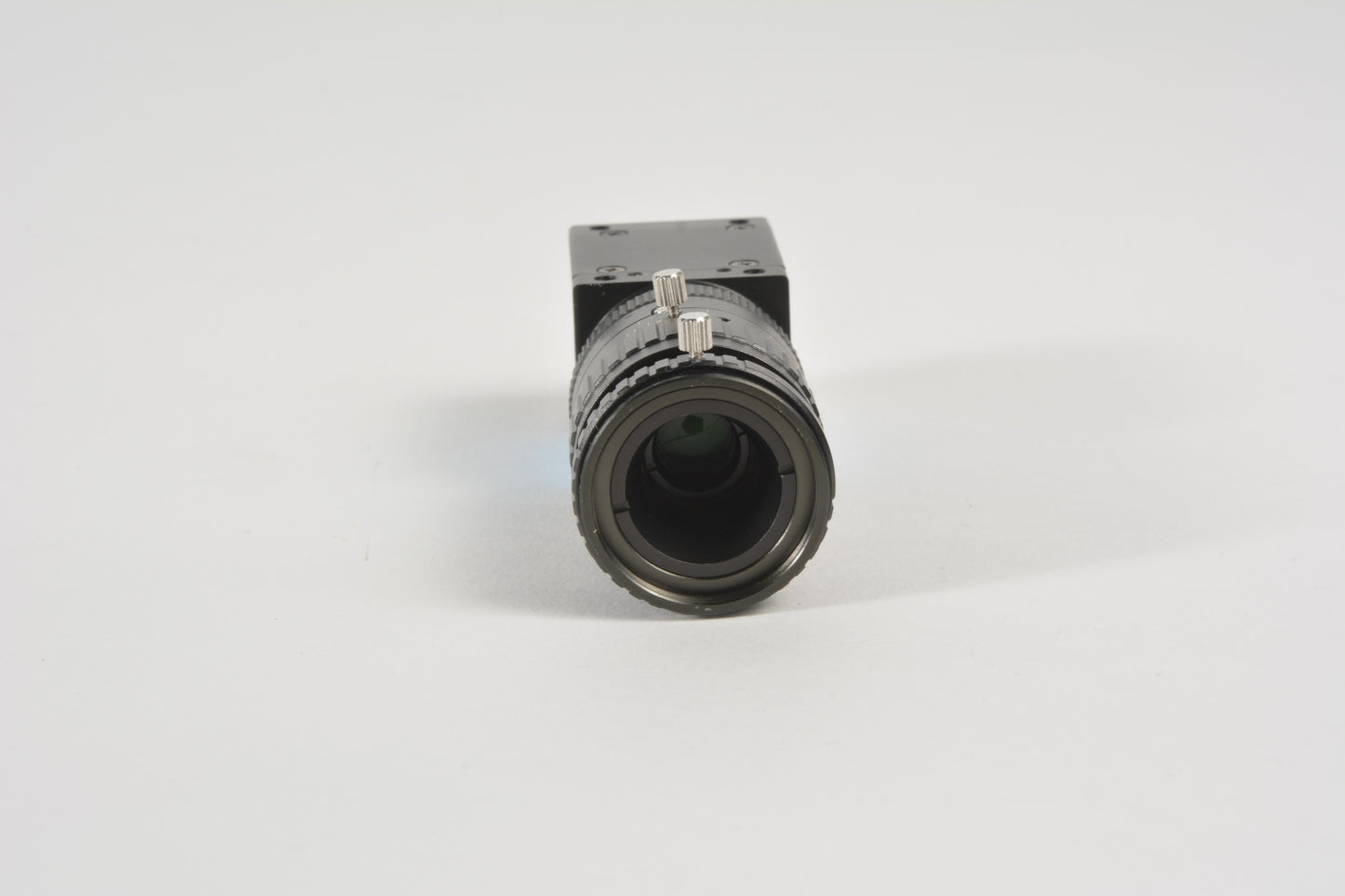

Imaging Source DMK 23F274 10mm Attachment
Imaging Source DMK 23F274 10mm Attachment
1 in stock
Couldn't load pickup availability
Camera was pulled from a working environment.
Unit was lightly used showing no major signs of wear.
Additional information below, information was found online and is for reference only.
On hand and ready to ship!
Thank you for checking out our listing.
| Manufacturer | The Imaging Source |
|---|---|
| Model Number | DMK 23F274 |
| SKU | 19-27801 |
| Ref | 23-35496 |
| Additional information found online. | ||
|---|---|---|
|
General behavior Sensitivity 0.05 lx Dynamic range 8/12 bit Video formats @ frame rate (maximum) 1,600×1,200 (1.9 MP) Y800 @ 20 fps 1,600×1,200 (1.9 MP) Y16 @ 15 fps Interface (optical) IR cut filter Sensor type CCD Sensor specification Sony ICX274AL Shutter global Format 1/1.8 inch Pixel size H: 4.4 µm, V: 4.4 µm Lens mount C/CS Interface (electrical) Interface FireWire 800 Supply voltage 11 VDC to 13 VDC Current consumption approx 400 mA @ 12 VDC Auto iris control Trigger I/Os Interface (mechanical) Dimensions H: 29 mm, W: 29 mm, L: 47 mm Mass 65 g Adjustments Shutter 1/100,000 s to 30 s Gain 0 dB to 36 dB Environmental Temperature (operating) -5 °C to 45 °C Temperature (storage) -20 °C to 60 °C Humidity (operating) 20 % to 80 % (non-condensing) Humidity (storage) 20 % to 95 % (non-condensing)
|
