Brooks Automation

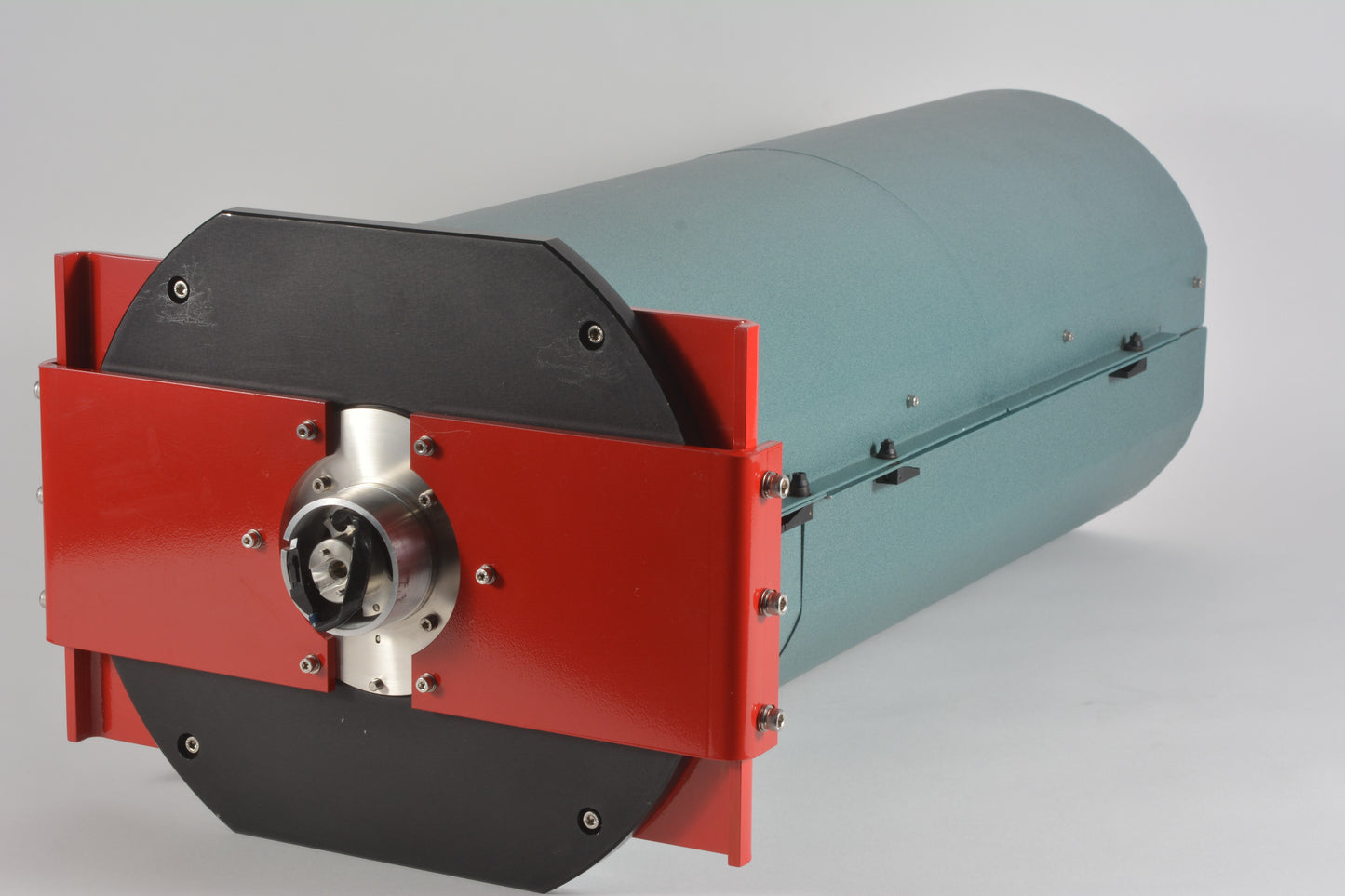

Brooks Automation 002-7090-05 ATR-7 Acutran Atmospheric Wafer Robot No SMC AS-IS

Brooks Automation 002-7090-05 ATR-7 Acutran Atmospheric Wafer Robot No SMC AS-IS

Regular price $853.20 USD
Regular price Sale price $853.20 USD
Sale Sold out
Shipping calculated at checkout.

1 in stock

  • This item will ship motor freight.
Condition
For parts or not working
Description

AS-IS - No way to test or guarantee - Functionality unknown.
See Photos for cosmetic condition.
Pictures are actual item being sold. Includes item only as pictured with no other parts, cords, cables or accessories.
Item on hand and ready to ship.
See Full Item Description for details.

Specifics
Manufacturer Brooks Automation
Model Number 002-7090-05
SKU 19-24772
Ref 23-40508
Item Details
Item Details

Serial Number: 0006-10631

Testing: No SMC Pressure Switch. Unable to test. Selling AS-IS, No returns, For Parts or Repair Only.

Cosmetic condition Since opinions regarding cosmetics can vary we ask you use the pictures provided to determine for yourself, if you need more please ask. There's no SMC Pressure Switch (See Photos).

AcuTran 7 Technical Specifications
(as published by manufacturer)

Wafer Sizes:
100mm, 125mm, 150mm, 200mm, and 300mm
Load Capacity:
500g (1.1 lb.)
Weight:
< 38 kg (84 lb.)
Overall Dimensions:
273mm Body Diameter
724mm Body Length
Mounting Configurations:
Top Mount
Base Mount
Arm Configuration:
2 Link “SCARA” type; Single End Effector
End Effector:
Vacuum Grip (standard)
Cleanliness:
< Class 1
Control Interface:
RS-232 Serial
Input Power:
24 VDC (+5V/ –0V) at 30 Amp
Vacuum Requirement:
≥ 600mm Hg (23.6 in.) at 50 cc/sec.
Range of Motion:
R Radial Axis Extension: 636mm
To Wafer Edge (for mapping): 462mm
⊖ Rotational Axis Span: Continuous
Z Vertical Axis Span: 438mm
Placement Repeatability:
0.05mm (3σ, typical)
Operating Speed:
3.8 sec. Transfer Time (typical pick and place period w/180° rotation)

**AS-IS Notice** Our test results are for informational purposes to honestly disclose the items condition and are not a professional diagnostic. We are not qualified and do not attempt to repair this type of item. We make no claim as to what is required in order for this item to function normally. This unit may have other problems we are unaware of and may not be complete.

Buy from us and save BIG! Our "For Parts or Repair" items are sold at heavily reduced prices!
All offers are considered, no reasonable offer is refused!
