Proportion Air QPV1TBNEEZP30PSGAXL Pressure Control Valve
Proportion Air QPV1TBNEEZP30PSGAXL Pressure Control Valve
1 in stock
Couldn't load pickup availability
Item was recently removed from working service and is in excellent working order. Item will come with a 30 Day Warranty.
Cosmetically in good condition showing minor scuffs / scratches / blemishes from previous use.
Includes Pressure Control Valve as pictured. No additional items or accessories are included.

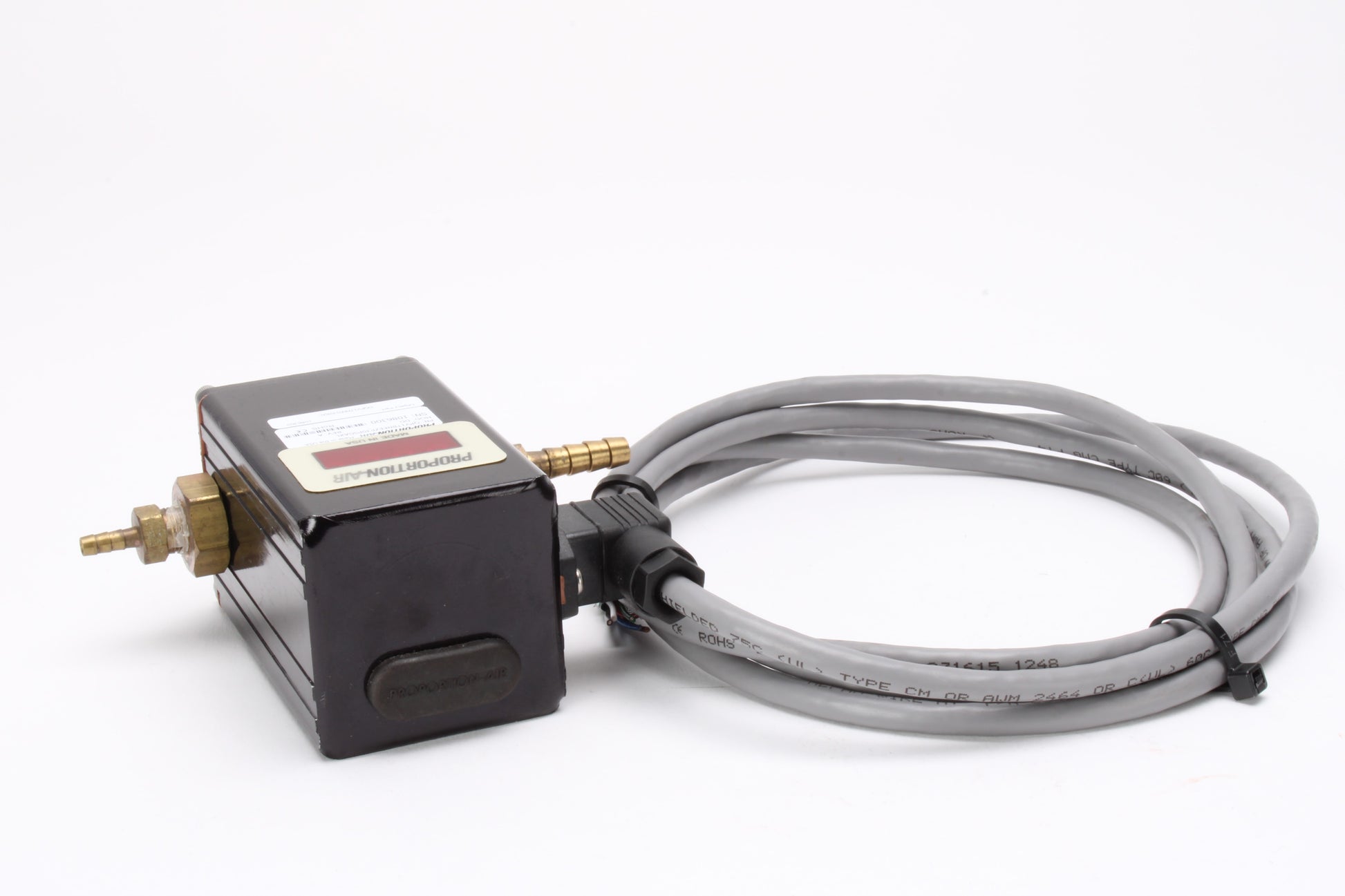

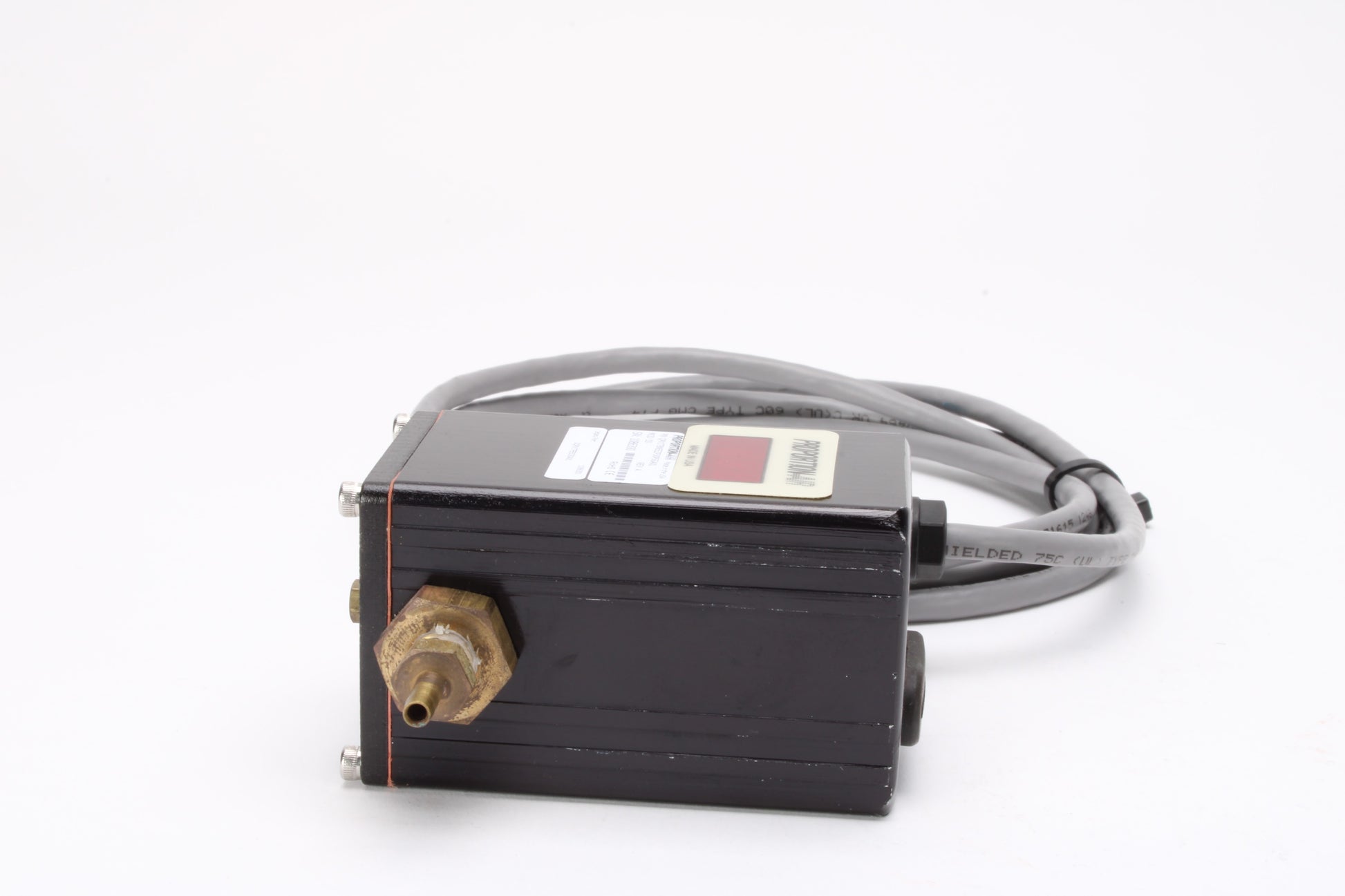

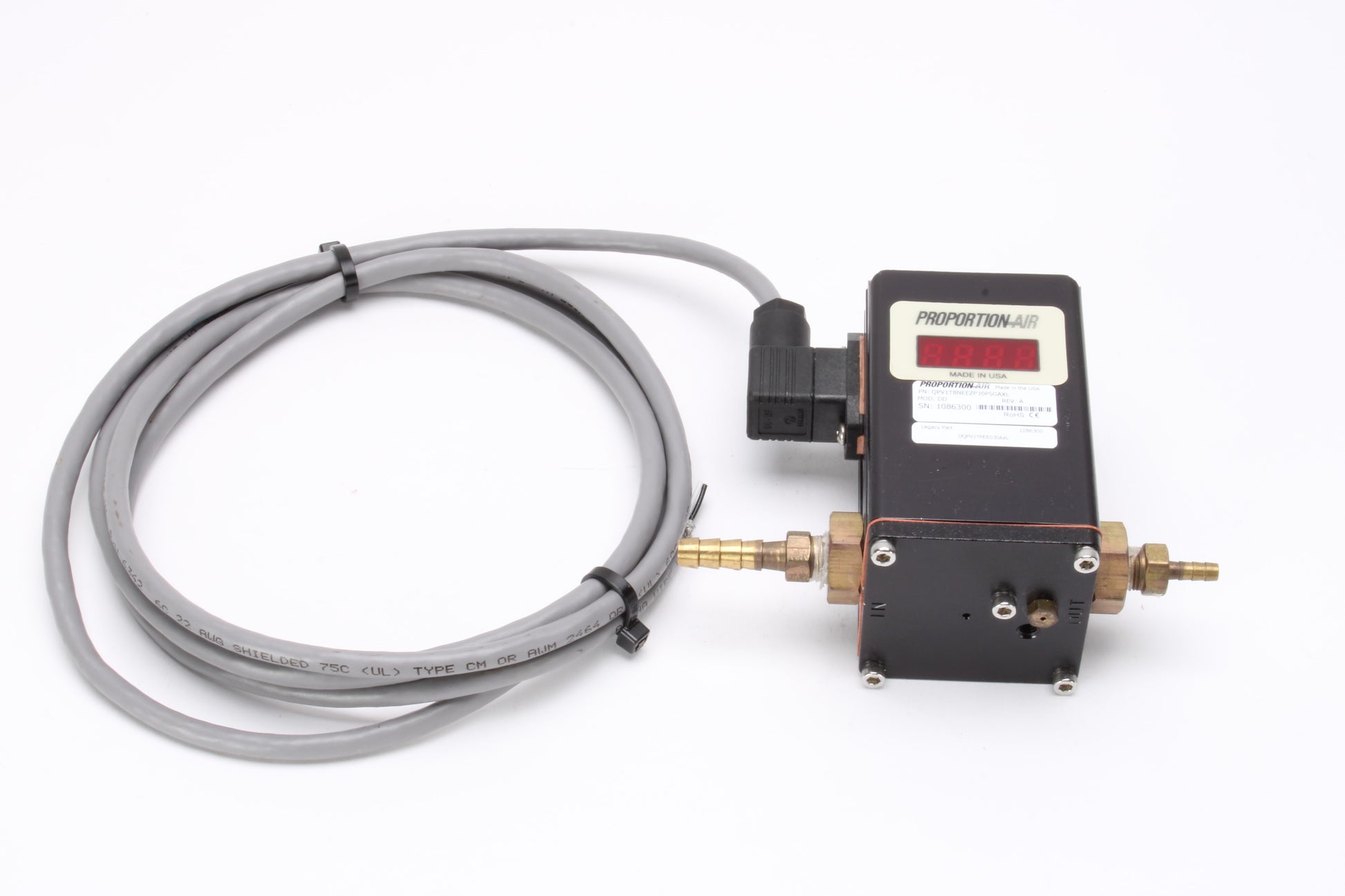

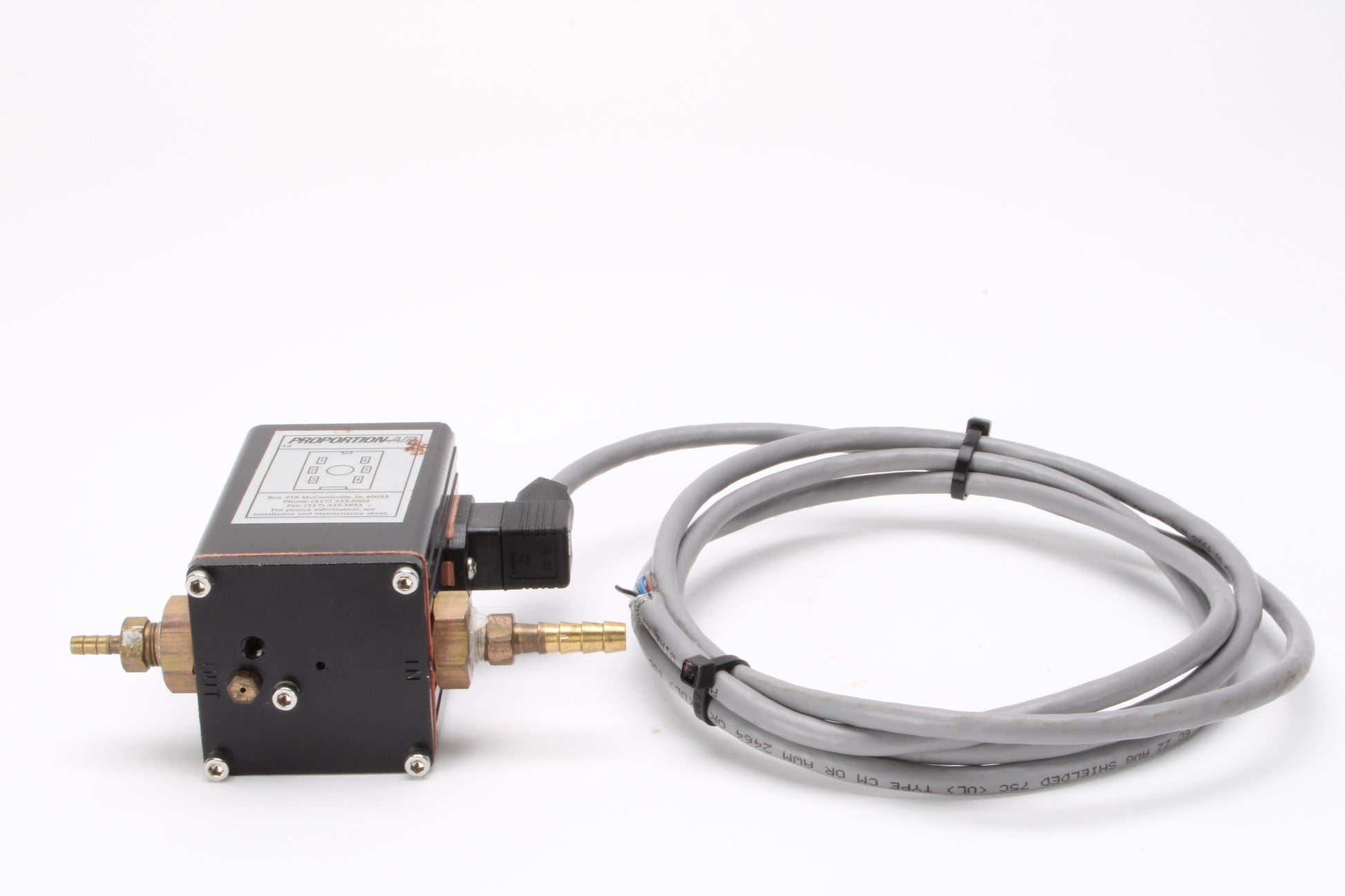

Photos are of the actual unit for sale.
Inventory is on hand and ready to ship. Please feel free to message us with any questions you may have.
| Manufacturer | Proportion Air |
|---|---|
| Part Number | DQPV1TFEE030AXL |
| Model Number | QPV1TBNEEZP30PSGAXL |
| SKU | 19-76748 |
| Ref | 23-110461 |
Type: Single Loop
Manifold Material: Brass
Thread Type: NPT
Command Signal Range: 0 to 10 VDC
Monitor Signal Range: 0 to 10 VDC
Zero Offset: 0% Pressure is Zero (Typical)
Full Scale Pressure Type: 100% Pressure is Above Zero
Full Scale Pressure: 30
Pressure Unit: PSI
Pressure Unit of Measure: Gauge Pressure
Inlet Valve: 0.013” (proportional valve)
Outlet Valve: 0.040” (digital valve)
Bleed Orifice: Factory Standard Bleed Orifice (0.004”)
